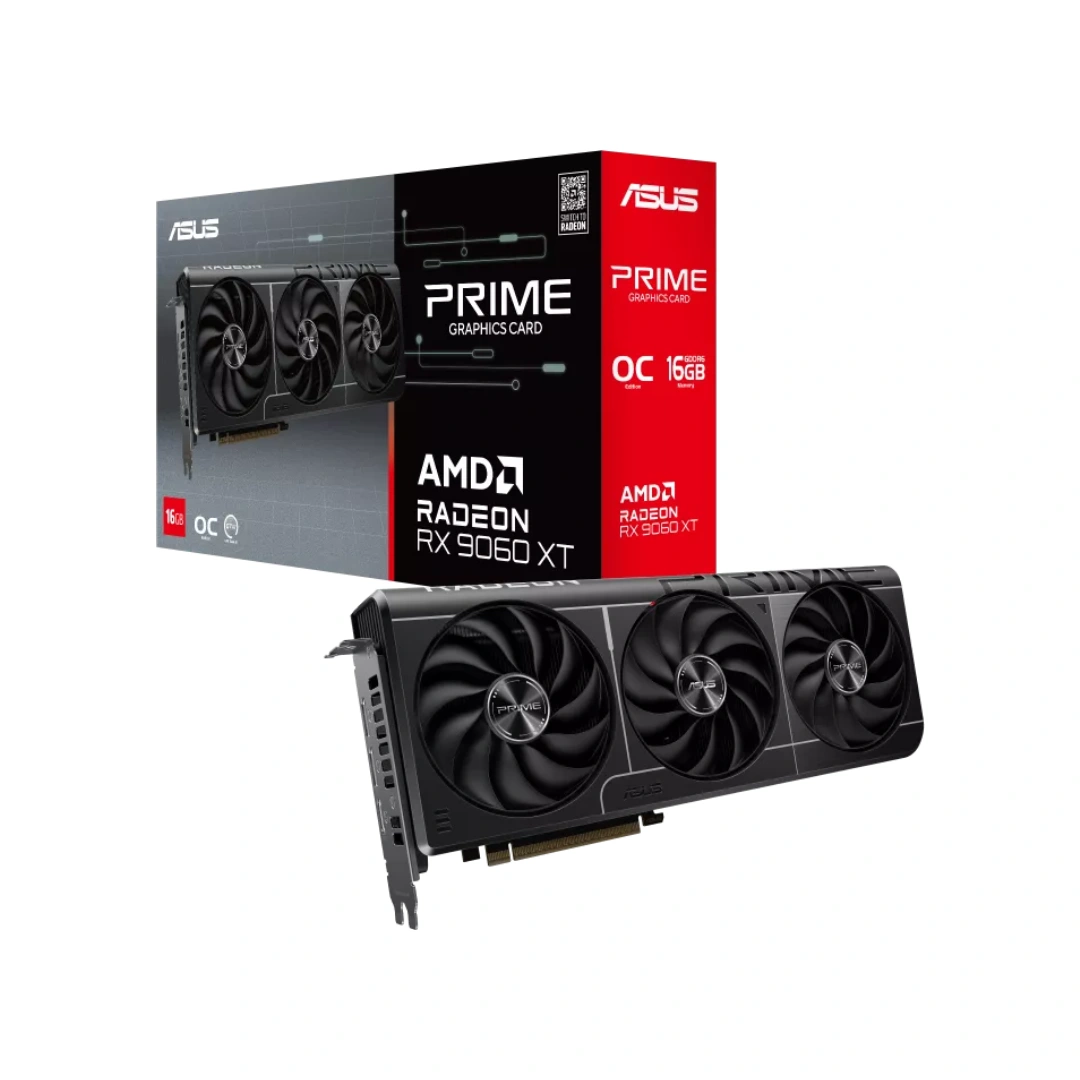

| 型號 | PRIME-RX9060XT-O16G |
| 繪圖核心 | AMD Radeon™ RX 9060 XT |
| 匯流排規格 | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| 記憶體形式 | 16GB GDDR6 |
| GPU 時脈 | OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock) Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock) |
| Stream Processors | 2048 |
| 記憶體速度 | 20 Gbps |
| 記憶體介面 | 128 位元 |
| 解析度 | Digital Max Resolution 7680 x 4320 |
| 介面 | Yes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1a) 支援HDCP : 有 (2.3) |
| 最多可支援顯示器數量 | 3 |
| NVlink/ Crossfire 支援 | 無 |
| 配件 | 1 x Thank you card 1 x Speedsetup Manual |
| 軟體 | ASUS GPU Tweak III & Drivers: please download all software from the support site. |
| 產品尺寸 | 304 x 126 x 50mm |
| 建議電源供應器 | 550W |
| 電源連接器 | 1 x 8-pin |
| Slot | 2.5 Slot |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
