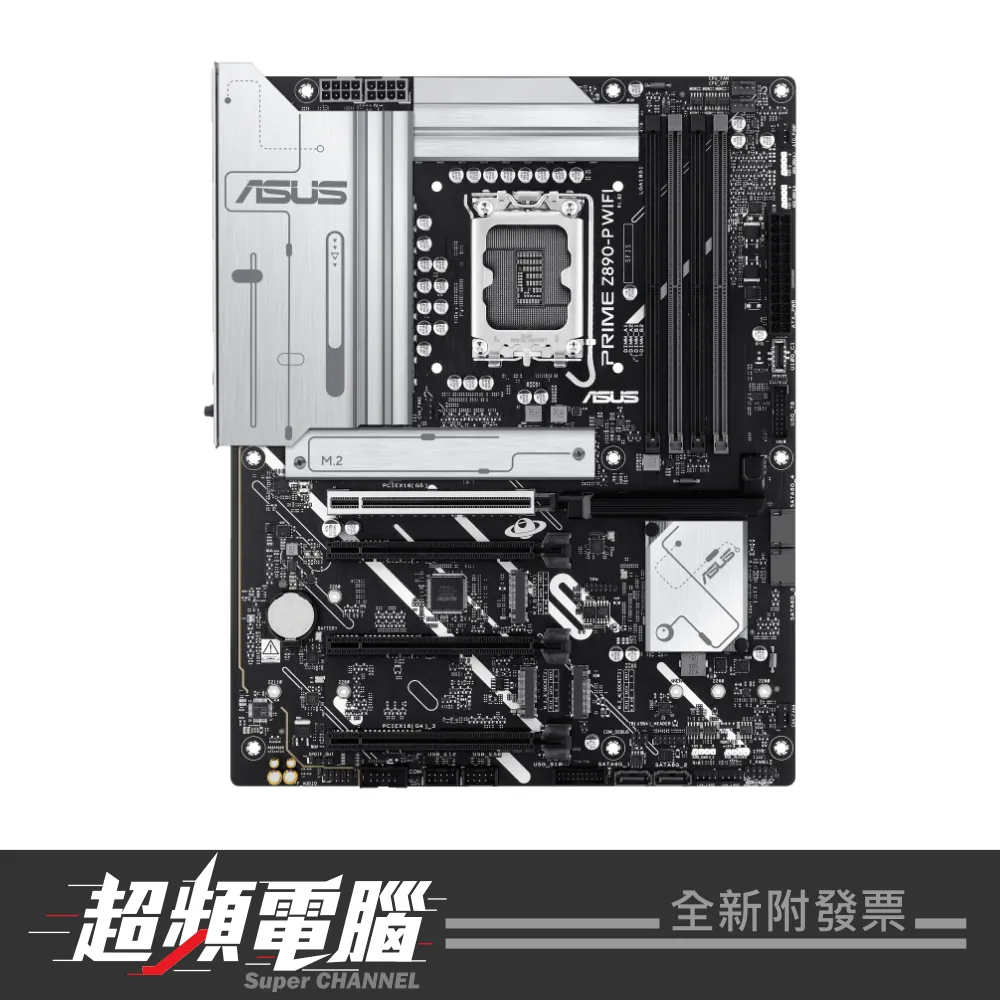

主機板
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| 晶片組 | Intel® Z890 Chipset |
| 記憶體 | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| 顯示晶片 | 1 x DisplayPort** 1 x HDMITM port*** 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. **** In DP alt mode, supports up to UHBR20. ***** VGA resolution support depends on processors’ or graphic cards’ resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| 擴充槽 | Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| 資料儲存應用 | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| 區域網路 | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB連接埠 | Rear USB (Total 8 ports) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)** Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. ** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth. |
| 音效 | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| 後面板輸出端子 | 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
| 內建 I/O 連接孔 | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Thunderbolt™ (USB4®) header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Dashboard – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield Aura Sync – Aura RGB header – Addressable Gen2 headers |
| 軟體功能 | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z TurboV Core Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey NPU Boost (Intel K-series Processors only) |
BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| 管理能力 | WOL by PME, PXE |
| 配件 | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide |
| 作業系統 | Windows 11 (22H2 & later) |
| 主機板尺寸 | ATX Form Factor 12 inch x 9.6inch ( 30.5 cm x 24.4 cm ) |

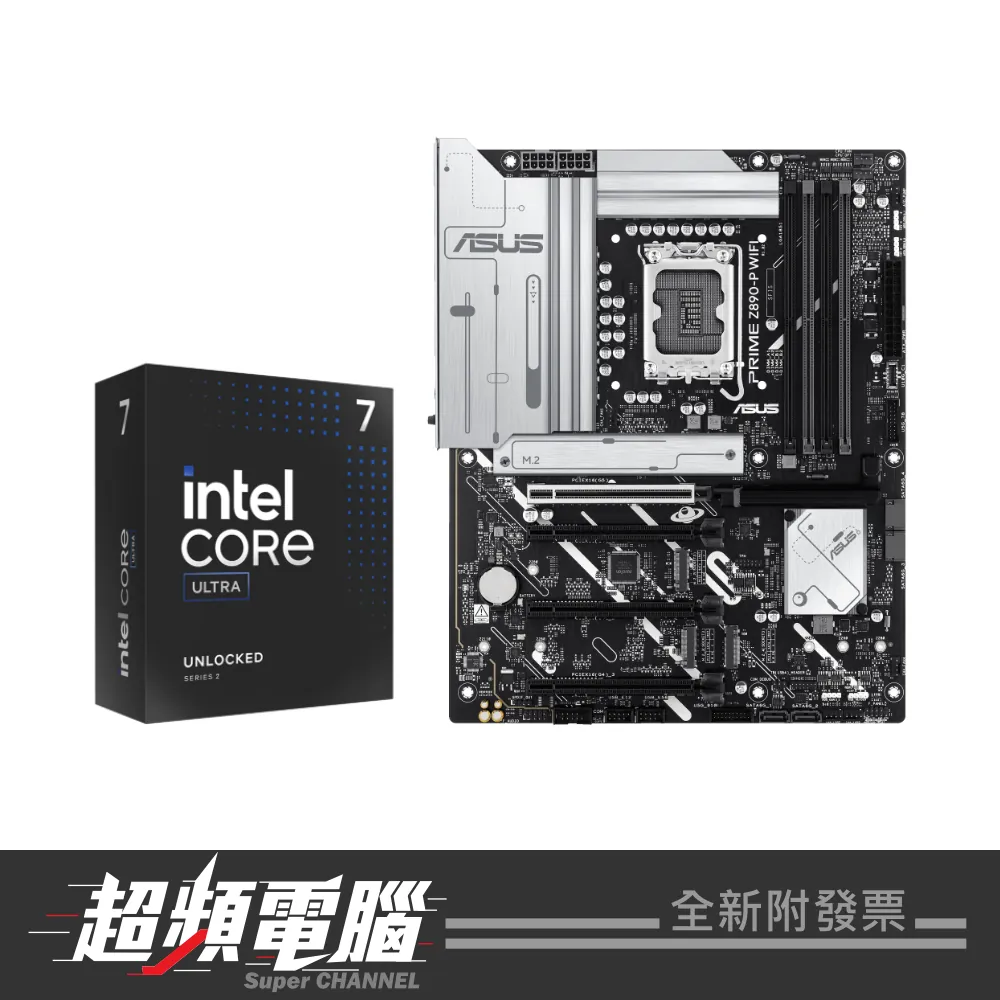

處理器
| 關鍵元件 | |
| 產品集合 | Intel® Core™ Ultra Processors (Series 2) |
| 代號 | Products formerly Arrow Lake |
| 垂直區段 | Desktop |
| 處理器編號 | 265K |
| 整體峰值 TOPS（Int8） | 33 |
| 建議客戶價格 | $394.00-$404.00 |
| CPU 規格 | |
| 核心數量 | 20 |
| Performance-core 的數量 | 8 |
| Efficient-core 的數量 | 12 |
| 執行緒總數 | 20 |
| 最大超頻 | 5.5 GHz |
| Intel® 渦輪加速 Max 技術 3.0 頻率 ‡ | 5.5 GHz |
| Performance-core Max 渦輪加速頻率 | 5.4 GHz |
| Efficient-core Max 渦輪加速頻率 | 4.6 GHz |
| Performance-core 基礎頻率 | 3.9 GHz |
| Efficient-core 基礎頻率 | 3.3 GHz |
| 快取記憶體 | 30 MB Intel® Smart Cache |
| L2 快取記憶體總計 | 36 MB |
| 處理器基礎功率 | 125 W |
| 渦輪功率上限 | 250 W |
| Intel® Deep Learning Boost | Yes |
| CPU 支援的 AI 軟體框架 | OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| CPU 光刻技術 | TSMC N3B |
| 補充資訊 | |
| 狀態 | Launched |
| 推出日期 | Q4’24 |
| 提供嵌入式選項 | No |
| 使用條件 | PC/Client/Tablet | Workstation |
| 資料表 | 立即檢視 |
| 記憶體規格 | |
| 最大記憶體大小 (取決於記憶體類型) | 256 GB |
| 記憶體類型 | Up to DDR5 6400 MT/s |
| Maximum Memory Speed | 6400 MHz |
| 最大記憶體通道數量 | 2 |
| 支援 ECC 記憶體 ‡ | Yes |
| GPU Specifications | |
| GPU Name‡ | Intel® Graphics |
| 繪圖基頻 | 300 MHz |
| 繪圖最大動態頻率 | 2 GHz |
| GPU 峰值 TOPS（Int8） | 8 |
| 繪圖輸出 | DP2.1 UHBR20 | HDM2.1 FRL 12GHz | eDP1.4b |
| Xe-core | 4 |
| 最大解析度 (HDMI)‡ | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| 最大解析度 (DP)‡ | 8K @ 60Hz |
| 最大解析度 (eDP – 整合平板)‡ | 4K @ 60Hz |
| DirectX* 支援 | 12 |
| OpenGL* 支援 | 4.5 |
| OpenCL* 支援 | 3 |
| Intel® 高速影像同步轉檔技術 | Yes |
| 支援的顯示器數量 ‡ | 4 |
| 裝置識別碼 | 0x7D67 |
| GPU 上的 Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| NPU 規格 | |
| NPU 名稱‡ | Intel® AI Boost |
| NPU 峰值 TOPS（Int8） | 13 |
| 稀疏支持 | Yes |
| Windows Studio 效果支援 | Yes |
| NPU 支援的 AI 軟體框架 | OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| 擴充選擇 | |
| 直接媒體介面（DMI）修訂版 | 4 |
| DMI 通道數量上限 | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| 可延展性 | 1S Only |
| PCI Express 修訂版 | 5.0 and 4.0 |
| PCI Express 設定 ‡ | Up to 1×16+2×4 | 2×8+2×4 | 1×8+4×4 |
| PCI Express 線道數量上限 | 24 |
| 封裝規格 | |
| 支援的插座 | FCLGA1851 |
| 散熱解決方案規格 | PCG 2020A |
| 最高作業溫度 | 105 °C |
| 進階技術 | |
| Intel® 高斯和類神經加速器 | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift 技術 | Yes |
| Intel® 渦輪加速 Max 技術 3.0 ‡ | Yes |
| Intel® 渦輪加速技術 ‡ | 2 |
| Intel® 64 ‡ | Yes |
| 指令集 | 64-bit |
| 指令集擴充 | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| 閒置狀態 | Yes |
| 進階 Intel SpeedStep® 技術 | Yes |
| 溫度監測技術 | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| 安全性與可靠性 | |
| Intel vPro® 資格 ‡ | Intel vPro® Enterprise |
| Intel® Threat Detection Technology (TDT) 威脅檢測技術 | Yes |
| Intel® 主動管理技術（AMT) ‡ | Yes |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Remote Platform Erase (RPE) ‡ | Yes |
| Intel® One-Click Recovery ‡ | Yes |
| Intel® Hardware Shield 資格 ‡ | Yes |
| Intel® 控制流強制技術 | Yes |
| Intel® Total Memory Encryption – Multi Key | Yes |
| Intel® AES 新增指令 | Yes |
| 安全金鑰 | Yes |
| Intel® 受信任的執行技術 ‡ | Yes |
| 執行禁用位元 ‡ | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| 模式型執行控制（MBEC） | Yes |
| Intel® 穩定影像作業平台方案 | Yes |
| 具 Redirect Protection (VT-rp) 的 Intel® 虛擬化技術 ‡ | Yes |
| Intel® 虛擬化技術 (VT-x) ‡ | Yes |
| 適用於導向式 I/O 的 Intel® 虛擬化技術 (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
