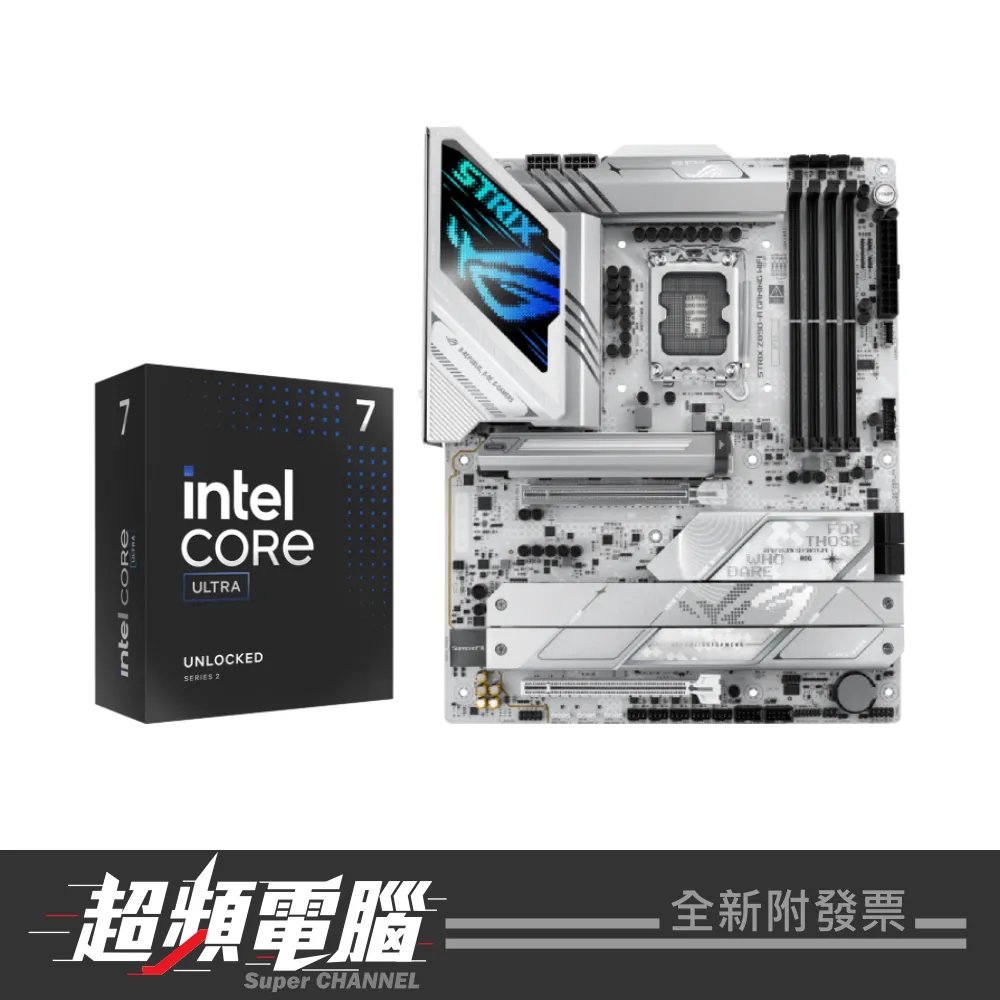

主機板
| CPU | Support Intel® Core™ Ultra Processors (Series 2)* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| 晶片組 | Intel® Z890 Chipset |
| 記憶體 | 4 x DIMM slots, max. 192GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex Supports DIMM FIT ASUS Enhanced Memory Profile III (AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| 顯示晶片 | 1 x DisplayPort* 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs*** – Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. **** VGA resolution support depends on processors’ or graphic cards’ resolution. ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| 擴充槽 | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slotIntel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| 資料儲存應用 | Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| 區域網路 | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB連接埠 | Rear USB (Total 10 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)** 2 x USB 5Gbps ports (2 x Type-A)Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| 音效 | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panelAudio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| 後面板輸出端子 | 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| 內建 I/O 連接孔 | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectorsStorage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous |
| Special Features | Extreme Engine Digi+ – 5K Black metallic capacitorsASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – PCIe Slot Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Dashboard – Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUSThermal Solution – M.2 heatsink backplate – M.2 heatsinkASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync |
| 軟體功能 | ROG Exclusive Software – ROG CPU-Z – Dolby AtmosASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – Power SavingAIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (30 Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide NPU BoostASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey FlexKey |
BIOS | 256 Mb UEFI AMI BIOS |
| 管理能力 | WOL by PME, PXE |
| 配件 | Cables 2 x SATA 6Gb/s cablesAdditional Cooling Kit 1 x Thermal pad for M.2 22110Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 rubbersDocumentation 1 x Quick start guide |
| 作業系統 | Windows 11 (22H2 later) |
| 主機板尺寸 | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
處理器
| 關鍵元件 | |
| 產品集合 | Intel® Core™ Ultra Processors (Series 2) |
| 代號 | Products formerly Arrow Lake |
| 垂直區段 | Desktop |
| 處理器編號 | 265K |
| 整體峰值 TOPS（Int8） | 33 |
| 建議客戶價格 | $394.00-$404.00 |
| CPU 規格 | |
| 核心數量 | 20 |
| Performance-core 的數量 | 8 |
| Efficient-core 的數量 | 12 |
| 執行緒總數 | 20 |
| 最大超頻 | 5.5 GHz |
| Intel® 渦輪加速 Max 技術 3.0 頻率 ‡ | 5.5 GHz |
| Performance-core Max 渦輪加速頻率 | 5.4 GHz |
| Efficient-core Max 渦輪加速頻率 | 4.6 GHz |
| Performance-core 基礎頻率 | 3.9 GHz |
| Efficient-core 基礎頻率 | 3.3 GHz |
| 快取記憶體 | 30 MB Intel® Smart Cache |
| L2 快取記憶體總計 | 36 MB |
| 處理器基礎功率 | 125 W |
| 渦輪功率上限 | 250 W |
| Intel® Deep Learning Boost | Yes |
| CPU 支援的 AI 軟體框架 | OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| CPU 光刻技術 | TSMC N3B |
| 補充資訊 | |
| 狀態 | Launched |
| 推出日期 | Q4’24 |
| 提供嵌入式選項 | No |
| 使用條件 | PC/Client/Tablet | Workstation |
| 資料表 | 立即檢視 |
| 記憶體規格 | |
| 最大記憶體大小 (取決於記憶體類型) | 256 GB |
| 記憶體類型 | Up to DDR5 6400 MT/s |
| Maximum Memory Speed | 6400 MHz |
| 最大記憶體通道數量 | 2 |
| 支援 ECC 記憶體 ‡ | Yes |
| GPU Specifications | |
| GPU Name‡ | Intel® Graphics |
| 繪圖基頻 | 300 MHz |
| 繪圖最大動態頻率 | 2 GHz |
| GPU 峰值 TOPS（Int8） | 8 |
| 繪圖輸出 | DP2.1 UHBR20 | HDM2.1 FRL 12GHz | eDP1.4b |
| Xe-core | 4 |
| 最大解析度 (HDMI)‡ | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| 最大解析度 (DP)‡ | 8K @ 60Hz |
| 最大解析度 (eDP – 整合平板)‡ | 4K @ 60Hz |
| DirectX* 支援 | 12 |
| OpenGL* 支援 | 4.5 |
| OpenCL* 支援 | 3 |
| Intel® 高速影像同步轉檔技術 | Yes |
| 支援的顯示器數量 ‡ | 4 |
| 裝置識別碼 | 0x7D67 |
| GPU 上的 Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| NPU 規格 | |
| NPU 名稱‡ | Intel® AI Boost |
| NPU 峰值 TOPS（Int8） | 13 |
| 稀疏支持 | Yes |
| Windows Studio 效果支援 | Yes |
| NPU 支援的 AI 軟體框架 | OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| 擴充選擇 | |
| 直接媒體介面（DMI）修訂版 | 4 |
| DMI 通道數量上限 | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| 可延展性 | 1S Only |
| PCI Express 修訂版 | 5.0 and 4.0 |
| PCI Express 設定 ‡ | Up to 1×16+2×4 | 2×8+2×4 | 1×8+4×4 |
| PCI Express 線道數量上限 | 24 |
| 封裝規格 | |
| 支援的插座 | FCLGA1851 |
| 散熱解決方案規格 | PCG 2020A |
| 最高作業溫度 | 105 °C |
| 進階技術 | |
| Intel® 高斯和類神經加速器 | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift 技術 | Yes |
| Intel® 渦輪加速 Max 技術 3.0 ‡ | Yes |
| Intel® 渦輪加速技術 ‡ | 2 |
| Intel® 64 ‡ | Yes |
| 指令集 | 64-bit |
| 指令集擴充 | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| 閒置狀態 | Yes |
| 進階 Intel SpeedStep® 技術 | Yes |
| 溫度監測技術 | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| 安全性與可靠性 | |
| Intel vPro® 資格 ‡ | Intel vPro® Enterprise |
| Intel® Threat Detection Technology (TDT) 威脅檢測技術 | Yes |
| Intel® 主動管理技術（AMT) ‡ | Yes |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Remote Platform Erase (RPE) ‡ | Yes |
| Intel® One-Click Recovery ‡ | Yes |
| Intel® Hardware Shield 資格 ‡ | Yes |
| Intel® 控制流強制技術 | Yes |
| Intel® Total Memory Encryption – Multi Key | Yes |
| Intel® AES 新增指令 | Yes |
| 安全金鑰 | Yes |
| Intel® 受信任的執行技術 ‡ | Yes |
| 執行禁用位元 ‡ | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| 模式型執行控制（MBEC） | Yes |
| Intel® 穩定影像作業平台方案 | Yes |
| 具 Redirect Protection (VT-rp) 的 Intel® 虛擬化技術 ‡ | Yes |
| Intel® 虛擬化技術 (VT-x) ‡ | Yes |
| 適用於導向式 I/O 的 Intel® 虛擬化技術 (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
