特價

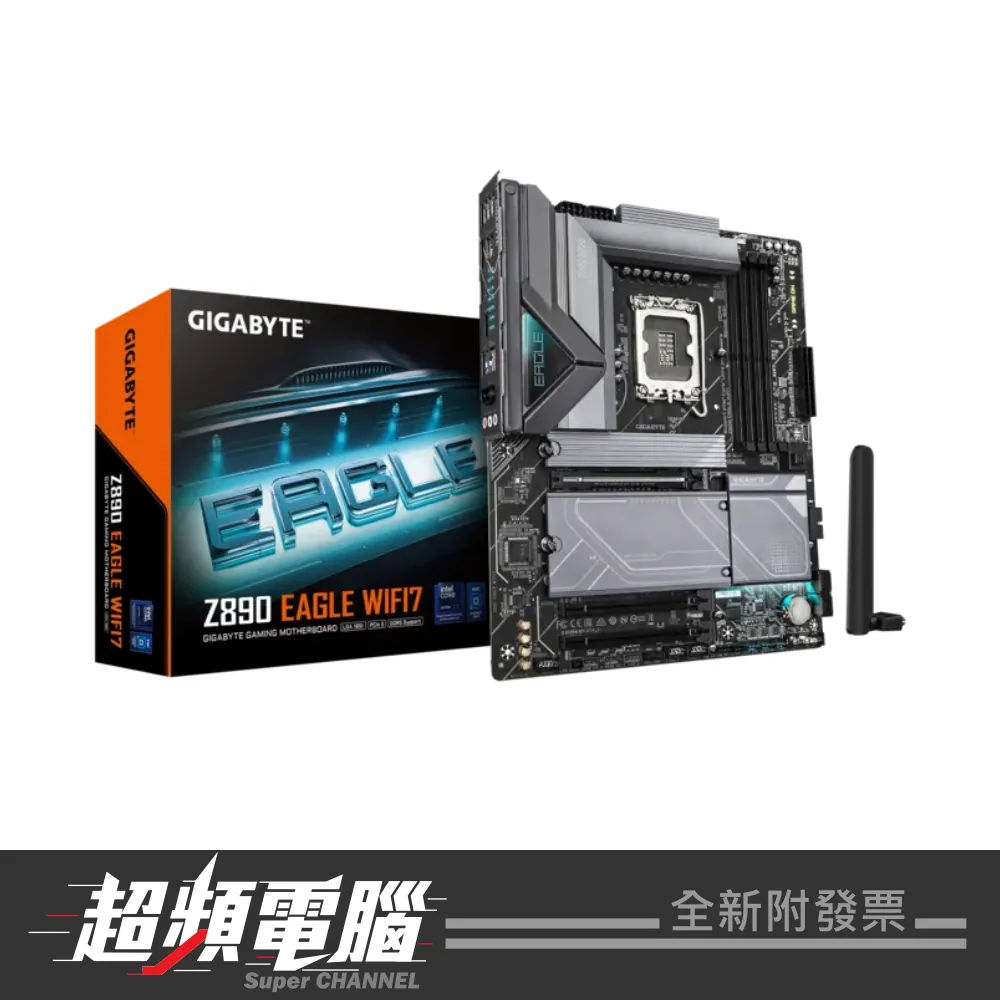

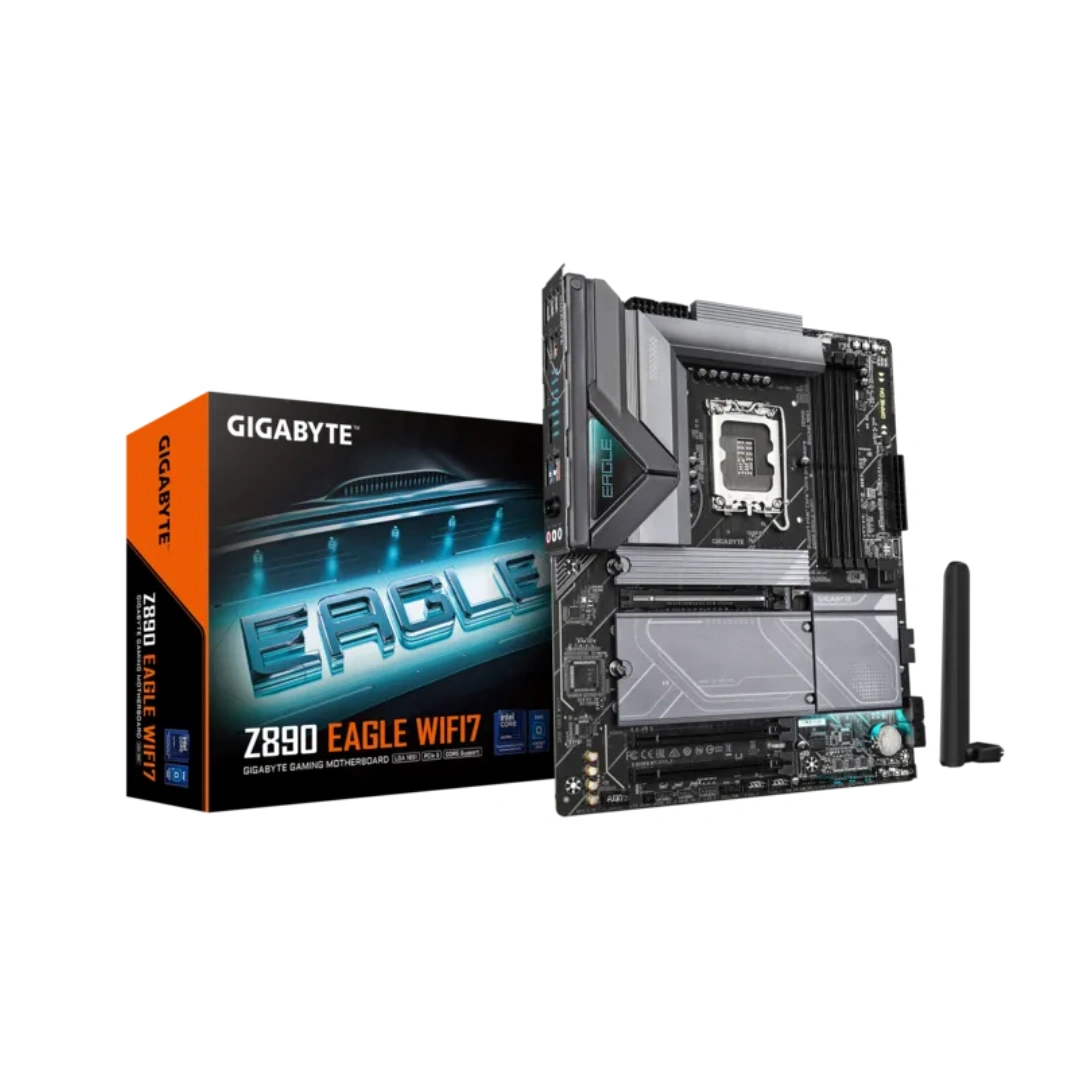

GIGABYTE 技嘉 Z890 EAGLE WIFI7 INTEL 主機板【送240水冷/850W電源】08G01736

  • 支援 Intel® Core™ Ultra處理器 (Series 2)
  • 數位並聯式 14+1+2相電源解決方案
  • D5 Bionic Corsa：AI D5 黑科技創造無限記憶體效能​
  • AI Perfdrive：為用戶提供最佳化和客製化的 BIOS 預設profile​
  • WIFI EZ-Plug：快速簡便的Wi-Fi天線安裝設計
  • HWinfo中全新 Power Monitor 功能,可即時監控CPU電源相位資訊
  • 迅速的網路連線 : 2.5GbE LAN & Wi-Fi 7
  • PCIe UD Slot X : 提供顯示卡10倍承重強度

原始價格：NT$8,390。目前價格：NT$7,700。

贈品
1 × ASUS 華碩 TUF Gaming LC III 240 ARGB 一體式CPU水冷散熱器【會員再折 2%】F8A02063
原始價格：NT$2,890。目前價格：NT$0。

庫存量: 3 件庫存

1 × FSP 全漢 Hydro G PRO 850W 80PLUS 金牌 全模組 PCIe 5.0 電源供應器 07F17068
原始價格：NT$2,990。目前價格：NT$0。

庫存量: 20 件庫存

庫存量: 5 件庫存

Spread the love

EAGLE WIFI7Key FeaturesSupports Intel® Core Ultra processors(Series 2) Digital twin 14+1+2 phases VRM solution Bionic Corsa for Infinite MemoryPerformanceAORUS SNATCH Auto-OverclockingSoftware by modelsAI Perfdrive Provides optimal andcustomized BIOS preset profile for usersPremium Compatibility 4*DDR5 with MPMemory Module SupportWIFI EZ-Plug Quick and easy design for Wi- antenna installationEZ-Latch Plus and M.2 slots withQuick Release & Screwless Design EZ-Latch Click M.2 heatsinks withscrewless design Friendly UI Multi-Theme AIO Fan Control,and Q-Flash Auto Scan in BIOS and SWNew Power Monitor in HWinfo for real-timemonitoring on CPU power phases Ultra-Fast Storage 4*M.2 slots, including1* PCIe 5.0 Efficient Thermal VRM Thermal ArmorAdvanced & M.2 Thermal Guard Fast Networking 2.5GbE LAN & Wi-Fi 7 Extended Connectivity USB4 Type-C withDP-Alt, DisplayPort PCIe UD Slot X PCIe 5.0 slot with strength for graphics cardGIGABYTEZ890 EAGLE WIFI7
Intel® Core Ultra processors(Series 2) Support141+2 Twin Digital VRM Design 60A DrMOS Copper PCB Premium Choke and Capacitor*7+7 Phases parallel power design4 M.2 Slots 1 5.0 M.2 Slot 3 4.0 M.2 SlotsOVERVIEWUD Power Connector 24 pin AT Power Connector 8+8 pin CPU with UD Solid Pin4 , Dual Channel DDR5Full-length PCIe slots 1 PCIe 5.0 16 with PCIe UD Slot X 2 x PCIe 4.0 x4 slots
Infinite Memory PerformanceD5 Bionic Corsa TechnologySteady PowerKeeps yourcomputing smooth.D5 Bionic CorsaAdvanced -enhancedoverclocking tech. forDDR5
ComprehensiveThermalKeep yoursystemcool andefficientHassle-free AssemblyUltimate DIY-FriendlyexperienceTailored ComputingMore superb, user-friendly, customized BIOS software.Born from UltraDurableBuilt for longevityand reliability.
MemoryInfinite MemoryPerformanceEAGLE motherboard boost DDR5 memoryperformance and offer top-notch compatibilityusing various advanced methodsMemory overclocking and XMP support may varyPlease refer to the qualified vendor list (QVL) fordetails and note that product features may vary bymodel.DDR5 Overclocking Up to MT/s
Bionic Corsa OverclockingFor peak performance DesignFor MB signal enhancement AORUS SNATCHAORUS SnatchAuto-OverclockingSoftware by model Coming soonAI SNATCH EngineAdvanced AIOverclockingModel-Driven PCB DesignRedefining PCBDesign with AIHyperTune BIOSAI-DrivenAdvanced BIOSOptimizationTechnology
Sturdy VRM DesignSteady PowerBetter Play EAGLE Series, steady power keeps your computing smoothDORSDigital Twin VRMDesign14Delivers consistent,high-poweredperformance toelevate youroverclocking to thenext level.VCORE Phases Unlock the fullpower of your multi-core CPU forunmatchedperformance.7+7 phases parallelpower design1VCCGT Phase Optimized forintegrated GPUperformance andmemorymanagement withinthe CPU.2VCCSA Phases Deliver reliablepower to your CPU-connected lanes foruninterruptedperformance.
CoolingComprehensive ThermalEAGLE motherboards come wh advanced full-metal thermal design and durable heatsinks tokeep your system cool and efficientLevel Epic VRM heatsinks for non-stopgaming Thermal GuardM2 Thermal GuardExtThe M2 ThermalGuard preventsMassive cooling surfaceExceptional heat dissipation thermal padthrottling andbottlenecks fromhigh speed M2SSDS it becomesan issue M.2slots coverageSmall VentsBig Cooling Power Test results are forreference only and may varyin different circumstances. RL-ILM designlower temperatureReduce up toCSmart Fan 6Cool. Quiet. Customized.
GIGABYTEEasy & FriendlyHasslefree AssemblyOur cuttingedge motherboard is designed forthe ultimate DIY experience Creating your ownPC becomes a delightful and smooth processWIFI PlugThe WIFI Plug design integrates Wi-Fiantenna plugs into one adapter to install.-Latch DesignsUser-friendly designs simplifying theassembly process. Images for reference onlyM.2 -Latch Clickscrewless installation for M.2 heatsinkM.2 EZ-LatchClickM.2 EZ-LatchPlus EZ-LatchPlus-Access Handy, Revert, RefreshEZ Debug Zone -FLASH Auto Scan
ConnectivityAll-round ConnectivityExperience ultimate connectivity with next-generation network, storage, and Wi-Fisolutions, delivering lightning-fast data transferspeeds.All-round Connectivity Native 40 Gbps USB4 Wi-Fi 7 2.5 LANHi-Fi Audio High-End Audio Capacitors Audio Noise Guard GIGABYTE000
Ultra DurableBorn from Ultra DurableTechnology embodies our commitment toexcellence, providing users with a platformthats not only powerful but also built forlongevity and reliability EAGLE seriesmotherboards are engineered to endure andexcel UD Slot The latest PCIe UD Slot X offersunparalleled robustness, deliveringsuperior protection for yourgraphics card load-bearing capacityintegrated, single-piece designanchored to a exclusive backplateInner Lining Rubber StripSafeguards your graphics cards PCBagainst potential damageZinc AlloyProvides effective EMI shielding forhigh-frequency signalsUD Power ConnectorOur innovative UD Power Connectordesign enhances power conductivityand thermal dissipation.Solid PinsDelivers superior conductivity andsignal transmission and reducesmetal wear from repeatedconnections.
Tailored mputingCollaborative Excellencein ComputingGIGABYTE motherboards showcases ourdevotion to BIOS improvement Throughsynergy with our user community, wedemocratize next-level computing powerUC BIOSRestructured with user-centered and intuitiveperformance adjustmentmechanisms.Multi-ThemeMultiple BIOS skin withnewly exclusive grayscalemodeGIGABYTE ControlCenterA unified softwareplatform encompassingmultiple GIGABYTEproduct.RGB FusionPersonalize the RGBillumination on yourmotherboard andconnected peripherals. Fan ControlAdjust AIO fan speed inthe BIOS PerfDriveExclusive PartnershipPower MonitorAORUS & Co-branded
* HDMI、HDMI High-Definition Multimedia Interface、HDMI 商業外觀及 HDMI 識別標章等詞彙均為 HDMI LicensingAdministrator, Inc. 的商標或註冊商標。實際出貨規格及產品外觀依各國家地區可能有所不同,我們誠摯的建議您與當地的經銷商或零售商確認目前販售的產品規格及樣式。* 產品可能會因拍照光線誤差或螢幕設定而與實際產品有所差異。* 我們會盡力提供正確與完整的資料於網頁上,並保留更動、修正頁面資訊的權利,恕不另行通知。
中央處理器CPU)晶片組記憶體顯示功能音效網路無線通訊模組擴充槽LGA1851 ocket: Support for Intel® Core Ultra ProcessorsL3 cache varies with CPU Please refer to CPU Support List for more informationIntel® Z890 Epress ChipsetSupport for DDR5 8800) 8600()8400()8266() 8200()8000()7950() 7900(OC)7800() 7600(OC) 7400()7200()7000(OC.) / 6800(O.C.) / 6600(O.C.) / 6400/6200/6000/5800 /5600MT/s memory modules.4 DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) ofsystem memoryDual channel memory architectureSupport for ECC Unbuffered DIMM 1R8/2R8 memory modules (operate in nonECC mode)Support for nonECC Unbuffered DIMM 1R8/2Rx8/1R memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module(The CPU and memory configuration may affect the supported memory types datarate (speed), and number of DRAM modules, please refer to Memory Support Listfor more information.)Integrated Graphics ProcessorIntel® HD Graphics support: 1 x USB Type port, supporting USB4 and DisplayPort video outputs anda maximum resolution of 3840x2160@144HzSupport for DisplayPort 2.1 version 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz Support for DisplayPort 2.1 version(Graphics specifications may vary depending on CPU support.)Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1channelYou can change the functionality of an audio jack using the audio software. To configure 7.1-channelaudio, access the audio software for audio settings.Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)MediaTek -Fi 7 MT7925 (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standardRealtek® -Fi 7 RTL8922AE (PCB rev. 1.1)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows10.)Wi-Fi 7 channels on 6 GHz band availability depends on individual countrys regulations.CPU:- 1 x PCI Express x16 slot, supporting 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an SSD. If only one graphics card is to beinstalled, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCle 4.0 and running at x4 (PCIEX4_1/2)
儲存裝置介面USB接插座CPU: 1 M2 connector Socket 3 M key type 251102211025802280 5.0 /SSD upport M2A_CPU) 1 M.2 connector Socket 3, M key, type 22110/2280 4.0 / SSD support)M2B_CPU)Chipset: 1 M.2 connector Socket 3, M key, type 22110/2280 PCle 4.0 / SSD support)(M2Q_SB) 1 M.2 connector (Socket 3, M key, type 22110/2280 SATA and 4.0 /SSD support) (M2M_SB) 4 SATA 6Gb/s connectorsRAD 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesCPU: 1 USB Type port on the back panelChipset: 1 USB Type port with USB Gen 2 support, available through the internalUSB header- 2 USB 3.2 Gen 2 Type-A ports (red) on the back panel- 5 USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through theinternal USB header)Chipset+2 USB 2.0 Hubs:- 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through theinternal USB headers)1 24-pin ATX main power connector2 8-pin ATX 12V power connectors1 CPU fan header1 CPU fan/water cooling pump header3 system fan headers1 system fan/water cooling pump header3 addressable RGB Gen2 LED strip headers1 RGB LED strip header4 M.2 Socket 3 connectors4 SATA 6Gb/s connectors1 front panel header1 front panel audio header1 USB Type- header, with USB 3.2 Gen 2 support1 USB 3.2 Gen 1 header2 USB 2.0/1.1 headers2 Thunderbolt add-in card connectors1 Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)1 power button1 Q-Flash Plus button1 reset button1 reset jumper1 Clear CMS jumper1 USB Type- port (DisplayPort (Note))2 USB 3.2 Gen 2 Type-A ports (red)3 USB 3.2 Gen 1 ports4 USB 2.0/1.1 ports1 DisplayPort (Note)2 antenna connectors (2T2R)1 RJ-45 port3 x audio jacks(Note) Actual support may vary by CPU.I/O控制器 I/O Controller Chip
硬體監控BIOS附加工具程式Voltage detectionTemperature detection speed detectionWater cooling flow rate detectionFan fail warningFan speed control Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 10a DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Support for GIGABYTE Control Center (GCC) Available applications in GCC may vary by motherboard model. Supported functions of each applicationmay also vary depending on motherboard specifications.Support for QFlashSupport for Q-Flash PlusSupport for Smart BackupNorton® Internet Security (OEM version)LAN bandwidth management software附贈軟體作業系統PCB規格ATX Form Factor; 30.5cm x 24.4cmSupport for Windows 11 64-bit- HDMI、HDMI High-Definition Multimedia Interface、HDMI 商業外觀及 HDMI 識別標章等詞彙 HDMI Licensing Administrator, Inc. 的商標或註冊商標* 產規格會依國家地區出貨而有所變動,應以各地實際出貨狀況為準,誠摯建議與當地經銷商或零售商確認最新產品販售規格* 以上產品之規格、圖片及其他資訊僅供參考,如與實際產品有任何不相符之處,應以實際產品為準技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失,技嘉科技概不承擔任何責任。*本產品所標示之表現為各品片廠商或各制定介面官方組織所提出的最大理論值,實際效能可能因規格及設備而有所不同。*本文中所使用之各項商標及企業識別圖示,均為其合法所有人之財產。*基於PC基本架構,有部分記憶體須留作系統用途,故所偵測到之記憶體大小會比實際上較少。

產品詳細規格請參考官方產品頁面：
https://www.gigabyte.com/tw/Motherboard/Z890-EAGLE-WIFI7

📍 嘉義門市自取與在地服務

本商品提供 嘉義市、嘉義縣地區自取服務，包含嘉義市東區、西區，以及水上、中埔、民雄、朴子等地區，適合希望快速取貨的玩家。
嘉義門市可協助 電腦組裝、現場測試與設備確認，確保商品狀況正常再交付。若需到店取貨，請先與客服聯繫確認庫存，以免白跑一趟。
我們提供完整的 嘉義電腦組裝、嘉義電腦零件、嘉義電腦配件與嘉義電腦維修 相關服務，支援玩家打造專業電競設備環境，讓你在嘉義也能享有快速、安心的購物體驗。

中央處理器(CPU)

LGA1851插槽，支援Intel® Core™ Ultra處理器
L3快取記憶體取決於CPU
* 詳細支援列表請參考 "CPU 支援列表"

晶片組

Intel® Z890高速晶片組

記憶體

支援DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s
4個DDR5 DIMM插槽，最高支援到256 GB (單一插槽支援64 GB容量)Š
支援雙通道記憶體技術
支援ECC Un-buffered DIMM 1Rx8/2Rx8記憶體(non-ECC模式運作)
支援non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16記憶體
支援Extreme Memory Profile (XMP)記憶體
(CPU和記憶體的配置可能會影響支援的記憶體類型、速度和DRAM模組數量，請查詢記憶體模組支援列表。)

顯示功能

內建於有顯示功能的處理器-支援Intel® HD Graphics：
– 1個USB4® USB Type-C®連接埠，支援USB4及DisplayPort技術之顯示輸出，可支援至最高3840×2160@144 Hz 的解析度
* 支援DisplayPort 2.1版本。

– 1個DisplayPort插座，可支援至最高3840×2160@144 Hz的解析度
* 支援DisplayPort 2.1版本。

(顯示功能所支援的規格將因使用的CPU而有差異。)

音效

內建Realtek® 音效晶片
支援High Definition Audio
支援2/4/5.1/7.1聲道
* 透過音效軟體可以重新定義音源插座功能，若要啟動7.1聲道音效輸出，請進入音效軟體設定。

網路

內建Realtek® 2.5GbE 網路晶片(2.5 Gbps/1 Gbps/100 Mbps)

無線通訊模組

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
– 802.11a, b, g, n, ac, ax, be，支援2.4/5/6 GHz無線頻段
– BLUETOOTH 5.4
– 支援11be 160MHz無線通信標準
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
– 802.11a, b, g, n, ac, ax, be，支援2.4/5/6 GHz無線頻段
– BLUETOOTH 5.4
– 支援11be 160MHz無線通信標準
(實際傳輸速度將因使用環境及設備而有所差異。)
* Wi-Fi 7的完整功能仰賴Windows 11 SV3版本的支援度，Windows 10沒有提供相關驅動程式。

** Wi-Fi 7於6 GHz 載波的可用頻道編號仰賴各國家的通訊法規允許。

擴充槽

內建於CPU：
– 1個PCI Express x16插槽，支援PCIe 5.0及x16運作規格(PCIEX16)
* PCIEX16插槽僅支援顯示卡或NVMe SSD，若只安裝一張顯示卡時務必安裝至PCIEX16插槽。

內建於晶片組：
– 2個PCI Express x16插槽，支援PCIe 4.0及x4運作規格(PCIEX4_1/2)

儲存裝置介面

內建於CPU：
– 1個M.2插座(支援Socket 3，M key，type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU)
– 1個M . 2 插座(支援S o c k e t 3，M k e y，t y p e 2 2 11 0 / 2 2 8 0 PCIe 4.0 x4/x2 SSD) (M2B_CPU)
內建於晶片組：
– 1個M.2插座(支援Socket 3，M key，type 22110/2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB)
– 1個M.2插座(支援Socket 3，M key，type 22110/2280 SATA及PCIe 4.0 x4/x2 SSD) (M2M_SB)
– 4個SATA 6Gb/s插座
NVMe SSD支援建構RAID 0、RAID 1、RAID 5及RAID 10
SATA硬碟支援建構RAID 0、RAID 1、RAID 5及RAID 10

USB

內建於CPU：
– 1個USB4® USB Type-C®連接埠在後方面板
內建於晶片組：
– 1個USB Type-C®連接埠，支援USB 3.2 Gen 2，需經由排線從主機板內USB插座接出
– 2個USB 3.2 Gen 2 Type-A連接埠(紅色)在後方面板
– 5個USB 3.2 Gen 1連接埠(3個在後方面板，2個需經由排線從主機板內USB插座接出)
內建於晶片組+2個USB 2.0 Hub：
– 8個USB 2.0/1.1連接埠(4個在後方面板，4個需經由排線從主機板內USB插座接出)

內接插座

1個24-pin ATX主電源插座
2個8-pin ATX 12V電源插座
1個CPU風扇插座
1個CPU風扇/水冷幫浦插座
3個系統風扇插座
1個系統風扇/水冷幫浦插座
3個可編程RGB Gen2 LED燈條電源插座
1個RGB LED燈條電源插座
4個M.2 Socket 3插座
4個SATA 6Gb/s插座
1個前端控制面板插座
1個前端音源插座
1個USB Type-C®插座，支援USB 3.2 Gen 2
1個USB 3.2 Gen 1插座
2個USB 2.0/1.1插座
2個Thunderbolt™擴充子卡插座(限搭配GIGABYTE Thunderbolt™ 5子卡使用)
1個安全加密模組插座(限搭配 GC-TPM2.0 SPI V2使用)
1個電源按鈕
1個Q-Flash Plus按鈕
1個系統重置按鈕
1個系統重置針腳
1個清除CMOS資料針腳

後方面板裝置連接插座

1個USB4® USB Type-C® (DisplayPort (註))連接埠
2個USB 3.2 Gen 2 Type-A連接埠(紅色)
3個USB 3.2 Gen 1連接埠
4個USB 2.0/1.1連接埠
1個DisplayPort插座 (註)
2個天線連接埠(2T2R)
1個RJ-45埠
3個音源接頭
(註) 是否支援此規格依CPU而定。

I/O控制器

內建iTE® I/O 控制晶片

硬體監控

電壓偵測
溫度偵測
風扇轉速偵測
水冷系統流速偵測
風扇故障警告
智慧風扇控制
* 是否支援智慧風扇(幫浦)控制功能會依不同的散熱風扇(幫浦)而定。

BIOS

1個256 Mbit flash
使用經授權AMI UEFI BIOS
PnP 1.0a、DMI 2.7、WfM 2.0、SM BIOS 2.7、ACPI 5.0

附加工具程式

支援GIGABYTE Control Center (GCC)
* GCC支援的程式會因不同主機板而有所差異；各程式所支援的功能也會依主機板的規格而不同。

支援Q-Flash
支援Q-Flash Plus
支援Smart Backup

附贈軟體

Norton® Internet Security (OEM版本)
LAN bandwidth management software

作業系統

支援Windows 11 64-bit

PCB規格

ATX規格；30.5公分x 24.4公分
